java应用之openfire入门篇

前言

openfire是一个聊天服务端，好比qq服务端.本质是个socker server.

openfire通讯协议是 xmpp ,什么是xmpp参考百科 https://baike.baidu.com/item/XMPP/3430617?fr=aladdin

openfire项目三部分

1.服务端 —> 2.桌面版客户端spark —> 3.smack(api客户端)

1.服务端结构

a.plugins(插件):

1.官方提供的插件

2.自己开发插件

功能概述：比如注册用户。

b.web版的管理端

2.桌面版客户端spark

a.类似QQ客户端,还没用

3.smack(api客户端)

a.api库，程序员都懂.

安装篇

下载 openfire-4.1.5-1.noarch.rpm,jdk环境1.8

#安装

rpm -ivh openfire-4.1.5-1.noarch.rpm

#启动

systemctl restart openfire

#浏览器打开

http://ip:9090

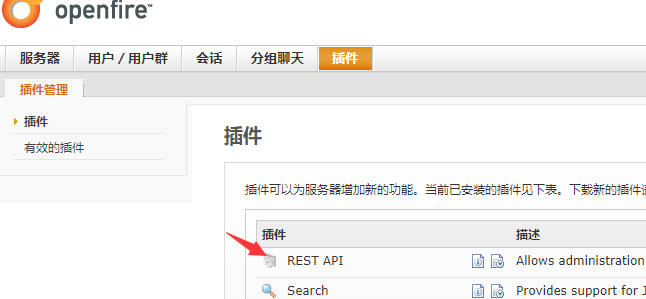

官方rest api插件使用

#安装rest api

REST API插件可以后台添加用户等等，详细查看文档

python调用例子:

#coding=utf-8

import requests

import json

tou1 = {"Authorization": "pymxG12RQQDj2vFY","Accept": "application/json"}

tou2 = {"Authorization": "pymxG12RQQDj2vFY","Content-Type": "application/json"}

tou3 = {"Authorization": "pymxG12RQQDj2vFY","Content-Type": "application/xml"}

def serach_user(user):

url = "http://192.168.0.110:9090/plugins/restapi/v1/users?search={user}".format(user=user)

r1 = requests.get(url,headers=tou1)

print r1.text

def create_user(user):

url = "http://192.168.0.110:9090/plugins/restapi/v1/users"

r1 = requests.post(url, headers=tou2,data=user)

print r1.text

print r1.status_code

def send_broadcast_message(message):

url = "http://192.168.0.110:9090/plugins/restapi/v1/messages/users"

r1 = requests.post(url, headers=tou3,data=message)

print r1.status_code

if __name__ == '__main__':

# c_user1 ={"username": "new1", "password": "p4ssword"}

# c_user1 = json.dumps(c_user1)

# create_user(c_user1)

message = """<?xml version="1.0" encoding="UTF-8" standalone="yes"?><message><body>Your message hello</body></message>"""

send_broadcast_message(message)

smack(api客户端)使用

创建个mavn工程.

pom.xml添加

<dependency><groupId>org.igniterealtime.smack</groupId>

<artifactId>smack-java7</artifactId>

</exclusion>

</exclusions>

</dependency>

</dependency>

<groupId>org.igniterealtime.smack</groupId>

<artifactId>smack-tcp</artifactId>

</dependency>

<groupId>org.igniterealtime.smack</groupId>

<artifactId>smack-im</artifactId>

</dependency>

<groupId>org.igniterealtime.smack</groupId>

<artifactId>smack-extensions</artifactId>

</dependency>

java客户端发送获取消息例子

package com.openfire.client;

import java.io.IOException;

import java.util.Scanner;

import org.jivesoftware.smack.AbstractXMPPConnection;

import org.jivesoftware.smack.StanzaListener;

import org.jivesoftware.smack.XMPPException;

import org.jivesoftware.smack.chat.Chat;

import org.jivesoftware.smack.chat.ChatManager;

import org.jivesoftware.smack.chat.ChatManagerListener;

import org.jivesoftware.smack.chat.ChatMessageListener;

import org.jivesoftware.smack.ConnectionConfiguration.SecurityMode;

import org.jivesoftware.smack.SmackException;

import org.jivesoftware.smack.SmackException.NotConnectedException;

import org.jivesoftware.smack.filter.StanzaFilter;

import org.jivesoftware.smack.packet.Message;

import org.jivesoftware.smack.packet.Stanza;

import org.jivesoftware.smack.tcp.XMPPTCPConnection;

import org.jivesoftware.smack.tcp.XMPPTCPConnectionConfiguration;

/**

* Hello world!

public class App extends Thread

{

void say() {

};

public static void main( String[] args ) throws SmackException, IOException, XMPPException, InterruptedException

{

// 对连接的配置

XMPPTCPConnectionConfiguration.Builder builder = XMPPTCPConnectionConfiguration.builder();

builder.setUsernameAndPassword("admin", "123456");

builder.setServiceName("ww110"); //openfire服务端名字，登录管理后台可查看

builder.setHost("192.168.0.110");

builder.setPort(5222);

// 不加这行会报错，因为没有证书

builder.setSecurityMode(SecurityMode.disabled);

//SASLAuthentication.supportSASLMechanism("PLAIN",0);

builder.setDebuggerEnabled(true);

XMPPTCPConnectionConfiguration config = builder.build();

// 建立连接并登陆

AbstractXMPPConnection c = new XMPPTCPConnection(config);

c.addPacketSendingListener(new StanzaListener() {

@Override

public void processPacket(Stanza st) throws NotConnectedException {

System.out.println("in StanzaListener:" + st.getFrom());

}

}, new StanzaFilter() {

@Override

public boolean accept(Stanza st) {

System.out.println("in StanzaFilter:" + st.getFrom());

return false;

}

});

c.connect();

c.login();

ChatManager chatManager = ChatManager.getInstanceFor(c);

chatManager.addChatListener(new ChatManagerListener() {

@Override

public void chatCreated(Chat cc, boolean bb) {

// 当收到来自对方的消息时触发监听函数

cc.addMessageListener(new ChatMessageListener() {

@Override

public void processMessage(Chat cc, Message mm) {

System.out.println("app2收到消息:" + cc + mm.getBody());

}

});

}

});

while (true) {

sleep(2000); //每2秒给new1用户发消息

Chat chat = chatManager.createChat("new1@ww110");

chat.getThreadID(); Message msg = new Message();

msg.setBody("kkkkkkkkkkkkkkkkkkkkk33333333333333333333333333333333333");

chat.sendMessage(msg); } } }

总结：

openfire只研究到这，暂时写到这。

from:https://www.cnblogs.com/whf191/p/7469545.html
